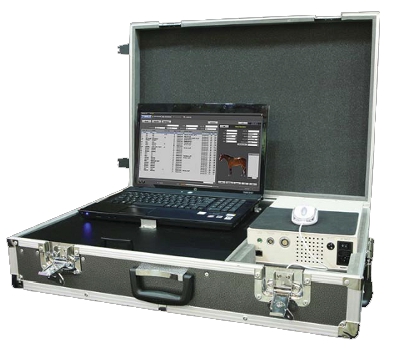

Portable Equine Xray DR9000F
Catalog Clear Vision DR9000F Brochure
- Flat Panel Detector
- TFT with a-Si
- Excellent reliability
- Wide dynamic range (14 bit A/D)
- Easy Integration
- One tile panel
- Quality Images in Seconds
- Improved Workflow
- Eliminate Costly Consumables
- Easy Image Sending for References
Viewing and Acquisition Software Included
Generator:
Lighter and more powerful than almost any other equine unit, this hand held generator is small enough to be held and positioned easily yet strong enough for even the most difficult exposures.
The 9020HF comes digital-ready, with both our standard heavy duty handswitch and an RJ-11 cord socket for interfacing with digital detectors
| Features | Specifications |
|---|---|
| High frequency inverter type generator (100kHz) | Max output power: 1.44 kW |
| Digital display: kV, mAs | High frequency inverter type (100kHz) |
| Self-diagonisis function to detect error conditions | kV rating: 40~90kV, 1kV increment |
| Self manageable APR function with memory key(5 exposure conditions) | mA rating: max 20mA |
| Excellent reproducibility not affected by line voltage variation | mAs rating: 0.4 ~ 32 mAs, 93steps at each kV step |
| Exposure time: 0.02 ~ 2.0 sec | |
| Cool-down period: 2 min at maximum output | |
| Total filtration: min. 2.55 mm Al eq. | |
| X-ray tube: focal spot size: 1.22mm, target angle: 19 degrees | |
| Anode heat storage capacity: 10kJ | |
| Full field light beam collimator with laser pointer | |
| Weight: Approx. 13lbs (6kg) | |
| Dimensions: 144(W) x 295 (D) x (157(H), excluding hand grip | |
| Line input power: 110VAC or 220VAC, 50/60Hz |
