Raymax Veterinary Digital Radiography DR X Ray

Veterinarian Digital Radiography dr xray
Veterinarian Digital Radiography DR Xray Brochure

The Raymax Veterinarian System features digital radiography (DR), a high frequency generator, and a 4 way float table. It is an affordable complete Digital Radiography (DR) solution with superior quality

DR Specifications

  • Detector Type: 16 Megapixel KODAK extreme KAF series CCD Detector Chip.
  • Optical Specification: Exclusive Leading Edge Optical Array with Breakthrough Light Transfer and Distortion Elimination Capability using NO Mirrors
  • Resolution: 4096 x 4096 Pixels Overall Imaging Resolution. Minimum 4.6 Line Pair per mm Resolution
  • Acquisition Time: Approximately 3 to 5 seconds from Exposure to Displayed Image.
  • Recycle Time: Zero Time Lag Between Subsequent Image Acquisitions.
  • Scintillation Screen: Cesium Iodide (CsI)
  • Active Image Area: 40.5 x 40.5 cm Active Area (43 x 43 cm Optional)
  • DICOM Format: Full DICOM 3.0 “Push/Pull” Connectivity to HIS/RIS and Practice Management Systems. Easy to Burn CD with on Board Auto Launch Mini Viewer.

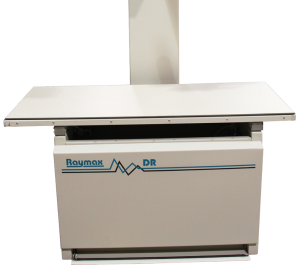

4-way Float Table Specifications
  • Height: 31 inches
  • Length: 60 inches
  • Width: 28 inches
  • Cross Table Travel: 8 inches
  • Longitudinal Table Travel: 14 inches
  • Space Requirement: 6 x 9 feet Vertical SID Fixed 40 inches
Computer Workstation (minimal req.)
  • 3.0 GHz Intel CPU
  • 4 GB High Speed RAM
  • 1 TB Hard Disk Drive @ 7200 RPM
  • Independent PCI Video Graphics Card (1 GB)
  • DVD/CD Drive @ 16 RW with Burner
  • Windows 7 Operating System
Monitor Specifications (minimal req.)
  • 2MB High Contrast 1920 x 1080
  • 21.5 Inch Display
  • Touch Screen (Optional)
