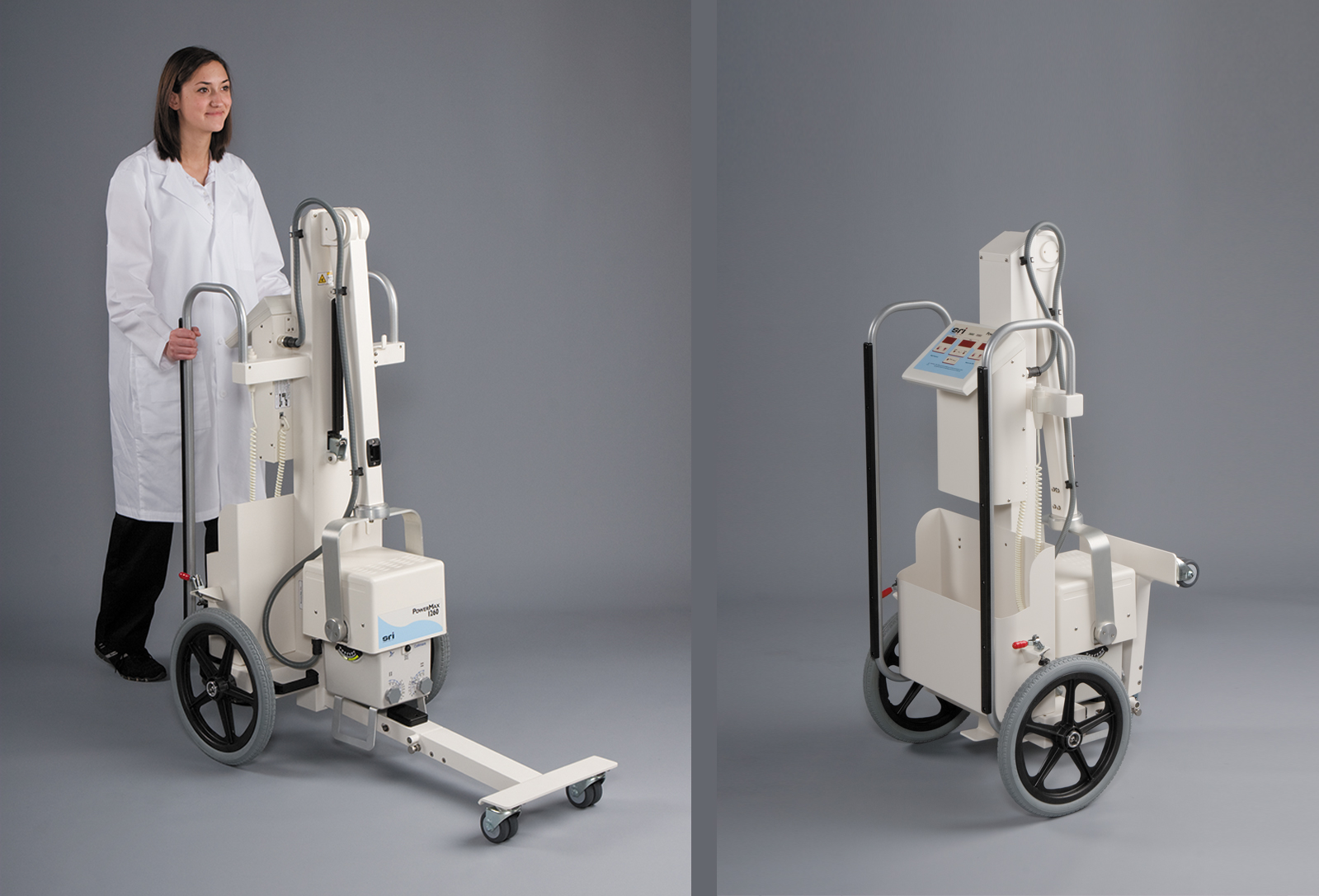

PowerMax 1260 portable X Ray System

Brochure_Digital Systems_Rev 2.pdf

The PowerMax 1260 is a 120kV, 15-60mA system. With 3kW across the full range, it can reduce exposure times on difficult radiographic anatomical views, thereby minimizing patient motion problems and enhancing image quality. It is available with an optional Digital Upgrade package for easy, fast Radiographic Image acquisition, or in a film based version.


Description Features Benefits
Model SR-1260 List Price: Call for latest pricing High Frequency Inverter Provides Agile Lightweight Portability
Radiographic Applications Designed with agility in mind for portable x-ray applications Used in hospitals, medical centers, clinics, sport complexes, nursing homes, home health care, correctional facilities & military applications
Generator Type High frequency Resonant Inverter Microprocessor controlled 3.0 kW Output – Fully Regulated mA / kVp
KVP Range 40 – 120 Extremity Range – Adjustable in 1kVp steps
MA Range 15 – 60 Selectable Constant mA – Independent of kV or Time
MAS Range 0.125 – 200 Optimum Range – Provides quality soft tissue & bone resolution
Exposure Time 0.01 – 3.33 Seconds 96 steps – Provides accurate technique settings
X-Ray Tube Stationary anode, 15° Target, 1.2 fs 30,000 Heat Unit Storage Provides superior image quality & heat storage
Collimator Collimare CP-100-24-C 200° Rotation – High output lamp, Laser Indicators
Exposure Switch 2 Position – Prep/X-Ray 15′ Cable
Mechanical Stand Welded Aluminum construction Light weight – Durable Powder Coat Finish
Tube Counter-Balance Gas filled locking piston Smooth Operation – Positive Lock
Rotational Movements Needle Bearings, Adjustable Friction movements Smooth Operation – Field Adjustable
Braking System Heavy Duty – Manual Lever Assures proper position is maintained
Cassette Storage Standard Equipment Seven Cassette Capacity – 14 x 17
System Dimensions Operation Mode
26″W x 42″L x 53″H
Storage Mode
26″W x 53″Lx 28″H
Agile – Extremely Maneuverable – Easy 2 step storage transport procedure
SID 13″ -79″ (from floor) Optimum Range – Weight bearing & Bed Work
Wheels 16″ Inflatable Heavy Duty Casters Easily Climbs Stairs – Smooth Movement
Weight 110 lbs. / 50 kg Light Weight
Electrical Specifications 110 VAC – 230VAC 50/60 Hz 230 VAC 50/60 Hz Wide Operating Range – Plugs into standard outlet
Product Compliance FDA 510 (k) Certified to FDA 21 CFR Subchapter J
Warranty Limited 3 Year Covers Manufacturers Defects on Travel Stand, X-Ray Control & X-Ray Generator. X-Ray Tube and Collimator prorated.


Power: 3kW
Input Voltage: 110 – 230VAC 50/60Hz (Power Factor Correction)
kVp Range: 40 – 120 kVp adjustable in 1kV increments – Closed loop regulation
mA Range: Adjustable 15 – 60 mA, closed loop regulation
mAs Range: 0.125 – 200
Exposure Time: 0.01 – 3.33 seconds
Indicators: Digital display of kVp, mAs and Exposure Time, X-Ray, Ready, mA Station and Fault indication.
Filtration: 3.6 mm al minimum @ 100kVp, 4.3 mm al minimum @ 120kVp
Exposure Switch: Detachable two-position

X-Ray Tube

Type: Stationary Anode 130 kVp
Target Material: Tungsten
Anode Capacity: 30,000 HU Storage
Focal Spot: 1.2mm
Target Angle: 15°


Type: Collimare CP-1 00-241-C
Laser Crosshairs: Center Locator
Tape Measure: SID Indicator
Inclinometer: Angle Indicator

Travel Stand

Min. F/S to Floor: 13″/33 cm
Max. F/S to Floor: 78″ /198 cm
Hor. Ext. of F/S: 21″/53 cm
Hor. Rotation: 200°
Tube Rotation: 270°
System Weight: 110 lbs. / 5O kG
