MIREYE Xray System

Mireye Xray system brochure

Automatic body part thickness detection with 3D Camera** **Automatic hands-free x-ray generator calibration with pdf report** Note: The system also can be installed without the 3D camera.

Here is the YouTube link for your review: Veterinary x-ray system: https://www.youtube.com/watch?v=YaqVPffQl94

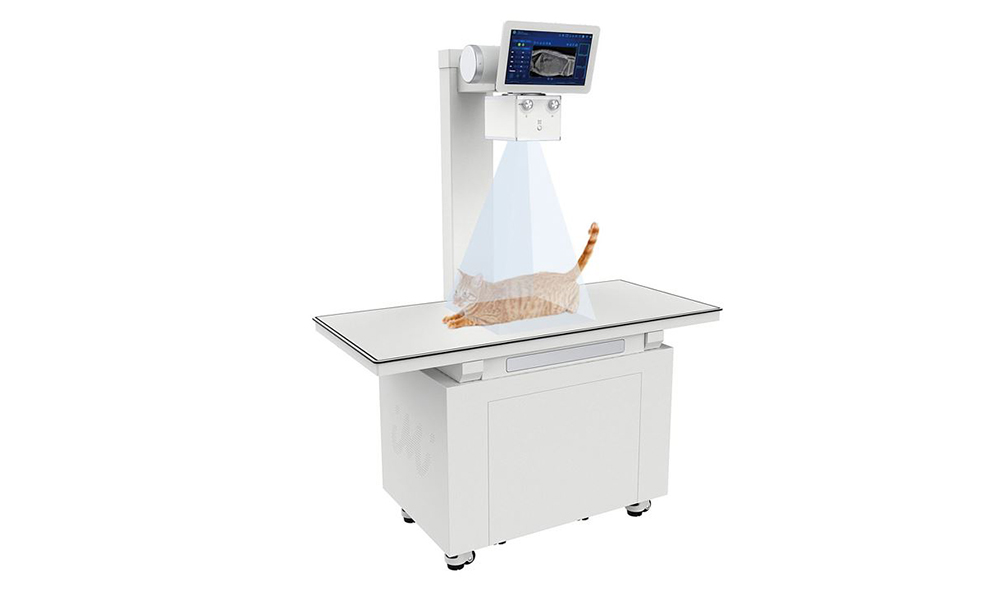

X-ray Tables:

  • 4-Way Float w/ Urine Trap & restraining straps.
  • Generator compartment.
  • Dual Foot Switch
  • 15.6-inch touch-screen. ( view x-rays / APR)
  • 5 specially designed casters under the table ( only one person is required for installation)
  • Caster's leveler base to make the table stationary and level. ( for uneven floors).
  • Grid cabinet
  • Push in/out cassette tray
  • Cable management cover
  • Service button ( used for auto-calibration)
  • Parts availability 24-48 hrs.
  • 7 days a week tech support

Smart Generator:

  • 32kW-40KW (400 mA)-SMART capacitor assistant X-ray Generator ( only 20Amp / 220VAC) power required
  • Remote Calibration with pdf report.
  • The generator is on the caster inside the table for fast and efficient service.
  • Large FS 80-100 KVP, 32- 40 mAs ( Enough for a large animal)
  • Small FS 80- 150 KVP, 20- 40 mAs ( Enough for a large animal)
  • compact, easy to install, and service.
  • Parts availability 24-48 hrs.
  • 7 days a week tech support
  • Maximum Radiation Leakage: 150KV 4mA.
  • Maximum coverage range: =430m×430m.
  • Light Source: LED.
  • Delay Time: 30s.
  • Auto-thickness Detection (ATD)
  • Minimum Inherent Filtration: 2mm AI equivalent.
  • Control method: Manual.
  • Power Input: DC24V.
  • Dimension (L×W×H): 200×266×189mm.
  • Weight: 5.5Kg.

Veterinary specially designed Collimator with 3D Camera ( without a 3D camera is also available).

X-ray Tube(E7239)

  • Toshiba / Canon X-ray tube.
