Examvue CR PRO Scanner

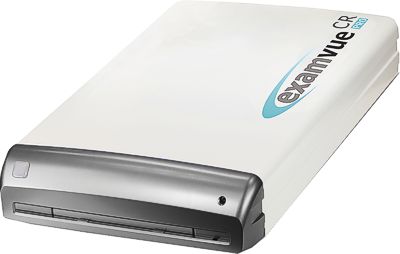

ExamvueCR PRO
Examvue CR Pro Brochure

The Examvue CR PRO scanners offer a combination of high image quality,affordability, speed and the ability to increase workflow in small to high volume practices. The CR is tailored to a Veterinary only Dental Cassette.


  • Scans 70 plates per/hour
  • Light weight- 42lbs
  • Three cassette sizes: 14x17; 10x12 ; 8x10
  • Wall mountable for tight or limited rooms
  • Easy to use software

Veterinary Only Dental Cassette
A unique veterinary dental cassette now allows practices without a dedicated Dental Reader to scan dental imaging plates using the ExamvueCR Veterinary Reader. This “dental ready” capability provides a cost-effective dental imaging solution for your practice. *Up to 125 IP/hour (18 cm x 24 cm cassette)


Cassette sizes:
                                                                   14×17, 10×12, 8×10
System set-up options Tabletop • Vertical wall mount
Selectable Pixel Size: High: 100µm • Standard: 200µm
Throughput:  Up to 70 plates/hour (35cm x 43cm)
Resolution Data Capture: 16-bits per pixel, 65,535 graytones
Dimensions (H x W x D) 5.4” x 17.9” x 31.6” ( 137 x 456x 803 mm)
42.4 lbs (19.5kg)
Image File Formats: DICOM 3.0, TIFF, BMP, JPEG • DICOM Send • Image Viewer • Window Level
Multi Frequency Image Processing • Zoom, Cropping, Mark • User defined LUT • DICOM Print • CD/DVD Burning
Computer  workstation recommended  minimum requirements: Intel Core i5
500 Gigabytes Hard Disk, 4 Gigabyte RAM Windows 7 and 8 (32-bit & 64-bit) CD/DVD, 3 USB 2.0 ports
Monitor: 1920×1080, 1440×900, DVI Interface
Power  requirements:
110/220/240V, 60/50cs • UPS required
Regulatory  approvals:
FDA 510(k) • CE (0120) • UL, cUL, FCC • Not approved for mammography
Dimensions(W x L x H) 18 x15 x 0.6″(460 x 384 x 15mm) Cassette Sized Standard for Wall or Table
Safety Standards: EN 60601-1 • EN 60825-1 • EN 60601-2
Operating  conditions: Temperature: 59-86 Fahrenheit (15-30 Celsius) • Temperature Gradient: 0.5 Deg. Celsius / Min.
Humidity: 15%-95% RH • Magnetic Field: Max. 1260 Micro Tesla
