DirectVet 110V DR System

DirectVet 110V DR System
DirectVet 110V DR System Brouchure

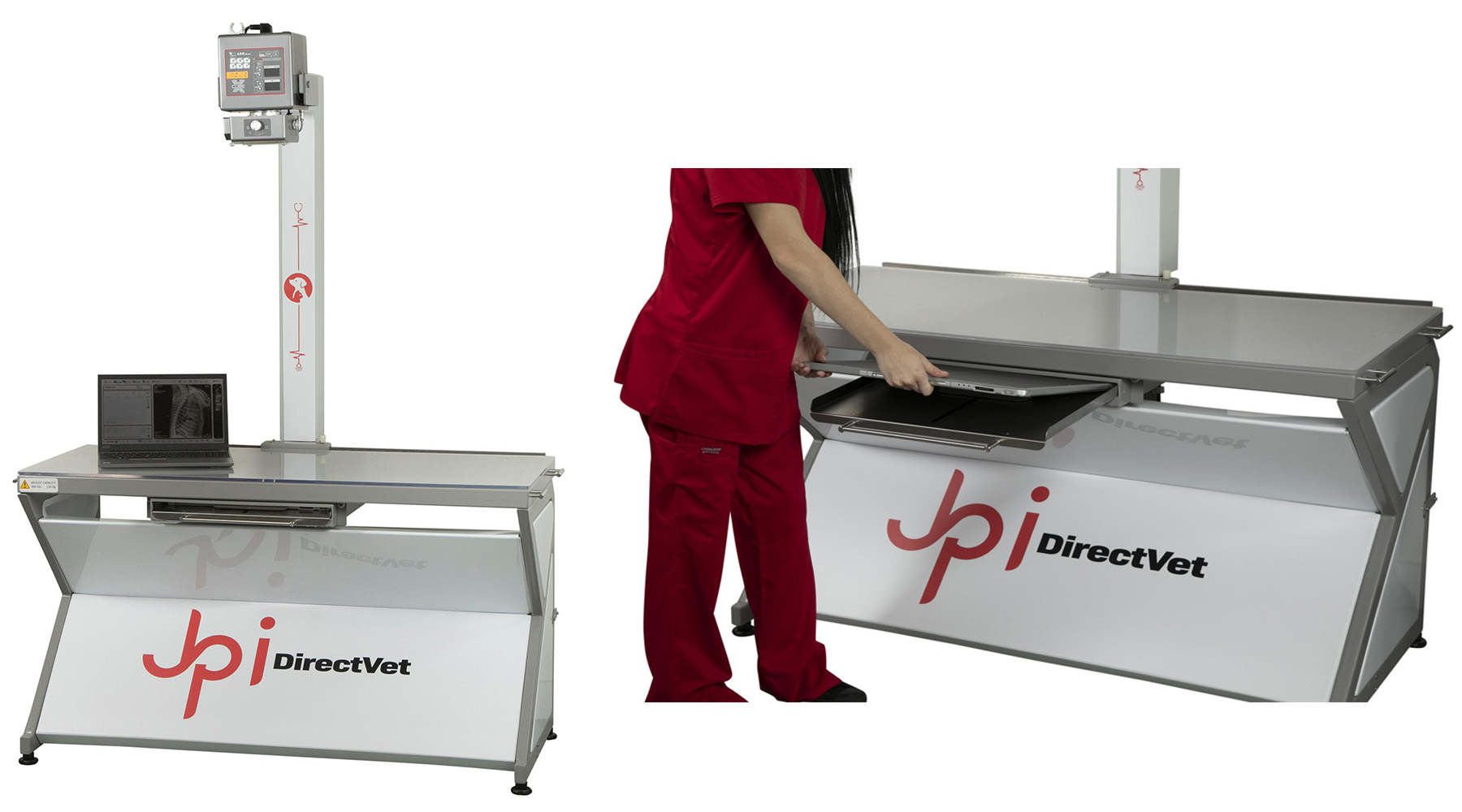

The new JPI DirectVet 110-volt Veterinary Digital X-ray combines our robust ExamVue Software, easy-to-install Vet-view Veterinary Table and high quality, cost-effective digital detector for a complete system that can be set up in one hour. The DirectVet system gives you quality digital x-rays, allowing your practice to hit the ground running at an attractive cost without special preparations, power supply, or construction.

Top-of-the-line Image Processing Combined with Advanced Functionality

  • Send DICOM or JPEG images to your existing practice management software.
  • Email images to Customer or colleagues for review.
  • User-friendly interface
  • X-ray generator and detector move together allowing for quicker exams
  • Heavy duty table holds over 300lbs

Get phenomenal image quality and reliability with numerous JPI advantages such as:

  • Enhanced image processing engine, provide superior image quality
  • Calibration before shipment
  • Software designed and supported by ExamVue
  • Cesium Iodide (CsI) detector technology generates quality images with high-precision for low-error diagnosis
  • Unmatched warranty program

Increased Productivity

The detector is read to shoot within 5 seconds of setup. Consecutive images are available in less than 4 seconds, allowing practitioners to increase productivity while also boosting client satisfaction.

DirectVet is powered by ExamVue DR acquisition software. Some highlights include:

  • Optimized UI design or touchscreen
  • Imaging and Annotation Tools (Window level, Zoom, Pan, Crop, Invert, Rotation, Angle, Label, Text)
  • User Features (Image stitching, Image import/export, Image comparison, Multi-view, Image expansion, Full screen, Auto cropping, Reject/Accept)
  • Smart Window Level
  • DICOM 3.0 Compatibility
  • Post image processing for each body part
Generator Detector Table
110-v Power Supply CsI Scintillator Synchronized Detector and Tube Stand
120kv/40mAs Max 126x126um Pixel Pitch Elegant Clear Table Top
27 Memory Keys 5 Year Warrranty 330lb Weight Capacity
1.2mm Focal spot 14"x17" (35x43cm) 38″ SID
0.0-4.0 Second Exposure Time 110-V Power Supply 32" (81cm), H x 54" ( 137cm) W x 24" (61cm)D
