Chiropractic U Frame X Ray System
Chiro U-Frame X-ray System Brochure

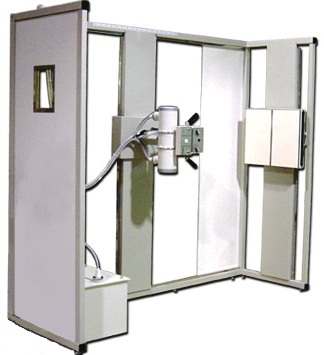

Chiropractic U-Frame X-Ray System
- Operating modes: kV/mAs, kV/mA/Time
- 32/40/50/65/80 & 100 kW power levels
- Compatible with both digital and conventional radiographic (RAD) systems
- kV/mAs Stepping
- Entire apparatus self-supporting
- Space requirement 5 x 10 feet
- No architectural changes required
- Fast, easy installation
- Operator station shielding incorporated
- 14” x 36” Grid Cabinet (Optional)
Generator
- Generator type CPI 40 kW High Frequency
- kV (Radiographic) 40-150 kV
- mA Range (RAD) 10 – 500 mA
- Line Nominal/Phase 1 Phase, 230 VAC
- Anatomical Programs 768 Techniques
- Technique Selection kV/mAs
- Approvals CSA, U/L, FDA, Health Canada
- Output up to 400 kHz
