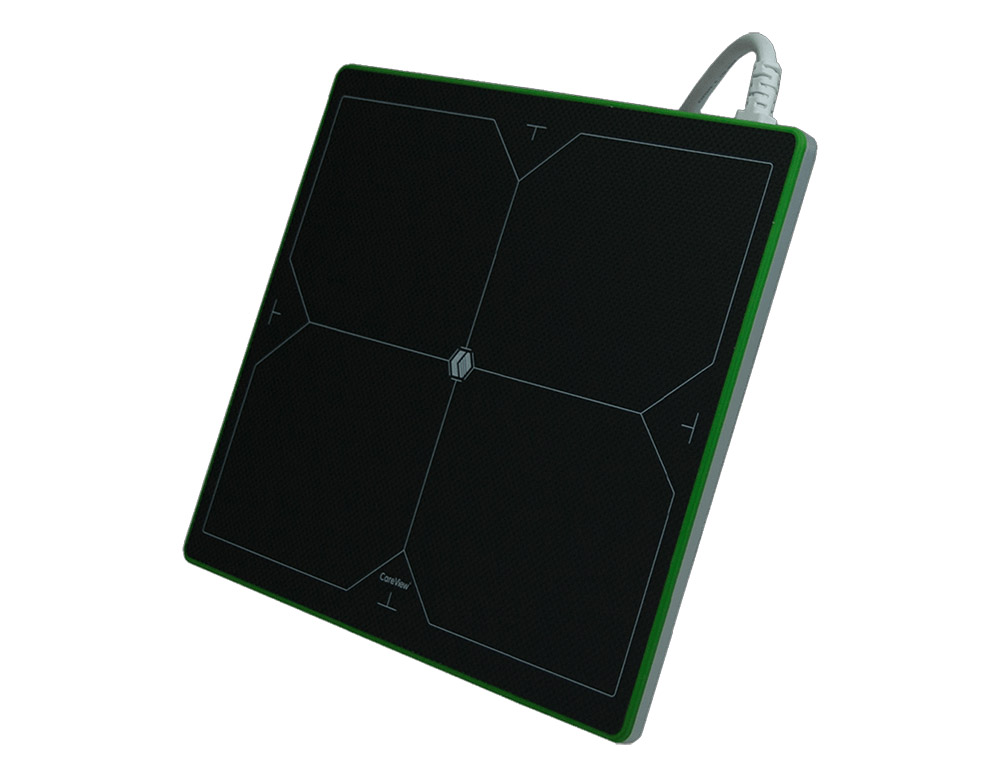

CareView 750C 10 x 12 Tethered Digital Detector

Patented Full Field Automatic Exposure Detection design for operational ease and elimination of wiring to the generator. Tough, yet sleek aluminum alloy and carbon fiber construction for long lasting, steady performance.

Basic Specifications

Sensor

• Scintillator - Direct Deposit Cesium Iodide (CsI)
• Active Area - 30.72 x 24.43 cm
• Pixel Array - 560 x 2048
• Pixel Pitch - 120 µm

Image Quality

• Greyscale - 16 bits
• Limiting Resolution - 4.16 lp/mm

Communication

• Communication Interface - Gigabit Ethernet
• Image Acquisition Time - 2-3 seconds
• Exposure Control - Full Field Automatic Exposure Detection (F2AED) or manual

Mechanical

• Dimension - 33.3 x 28.2 x 1.5 cm
• Weight - 2Kg (incl. battery)
• Housing Material - Carbon Fiber Front – High Strength Aluminum Alloy Back
• Weight Capacity - 150 Kg on surface area, 100 Kg on 4 cm circle
• Operating Temperature Range - 5-35 °C

Power

• Supply - 100-250V AC
• Frequency - 50/60 Hz
• Consumption - 17 W operating, 8 W standby

Regulatory

• FDA (USA) – Yes
• CE (Europe) – Yes
• CFDA (China) – pending
• HEALTH CANADA (Canada) – pending
