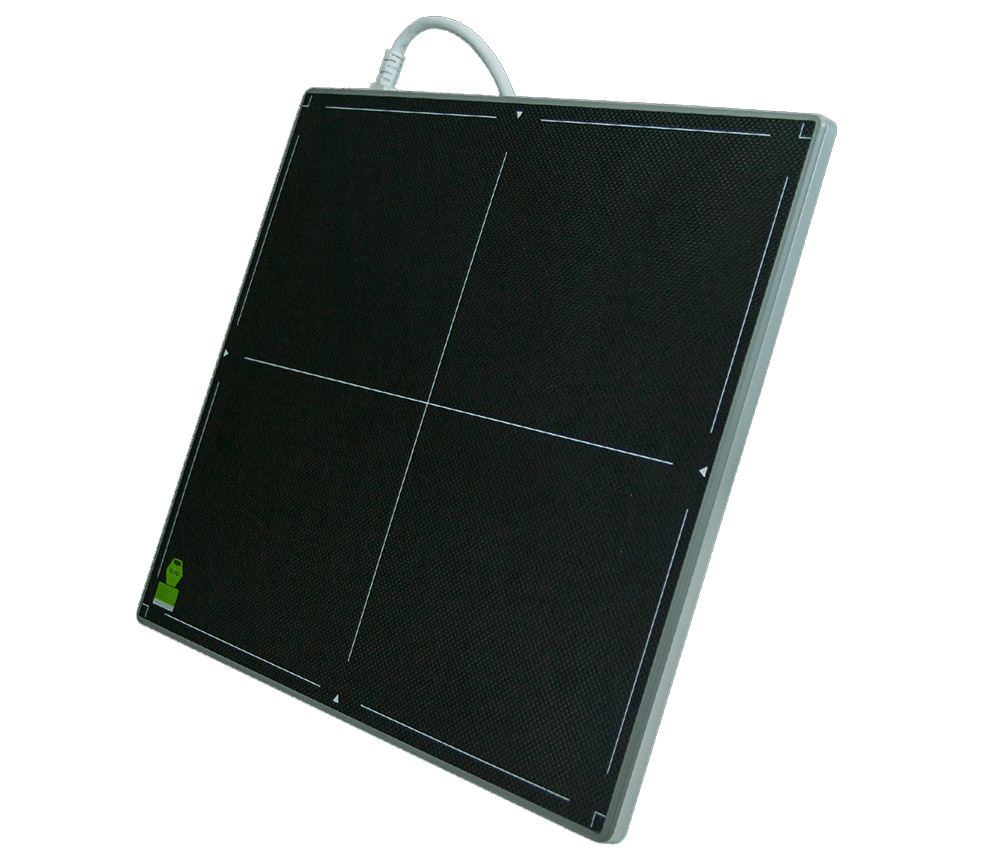

CareView 1500L 14 x 17 Tethered Digital Detector

CareView 1500L 14 x 17 Tethered Digital Detector

Thin design cassette made of high-strength, durable aluminum alloy and carbon fiber for years of reliable, trouble free operation. Unique Full-Field Automatic Exposure Detection offers full imaging area coverage.

Basic Specifications

Sensor

  • Scintillator - Direct Deposit Cesium Iodide (CsI)
  • Active Area 43.37 x 35.48 cm
  • Pixel Array 2816 x 2304
  • Pixel Pitch 154 µm

Image Quality

  • Greyscale - 16 bits
  • Limiting Resolution - 3.3 lp/mm

Communications

  • Communication Interface - Gigabit Ethernet
  • Image Acquisition Time - 2-3 seconds Exposure Control - Full Field Automatic Exposure Detection (F2AED), manual or external sync

Mechanical

  • Dimension - 46 x 38.4 x 1.5 cm
  • Weight - 3.4 Kg (incl. battery)
  • Housing Material - Carbon Fiber Front – High Strength Aluminum Alloy Back
  • Weight Capacity - 150 Kg on surface area, 100 Kg on 4 cm circle
  • Operating Temperature Range - 5-35 °C

Power

  • Supply - 100-250V AC
  • Frequency - 50/60 Hz
  • Consumption - 20 W operating, 8 W standby

Regulatory

  • FDA (USA) – Yes
  • CE (Europe) – Yes
  • CFDA (China) – Yes
  • HEALTH CANADA (Canada) – Yes
