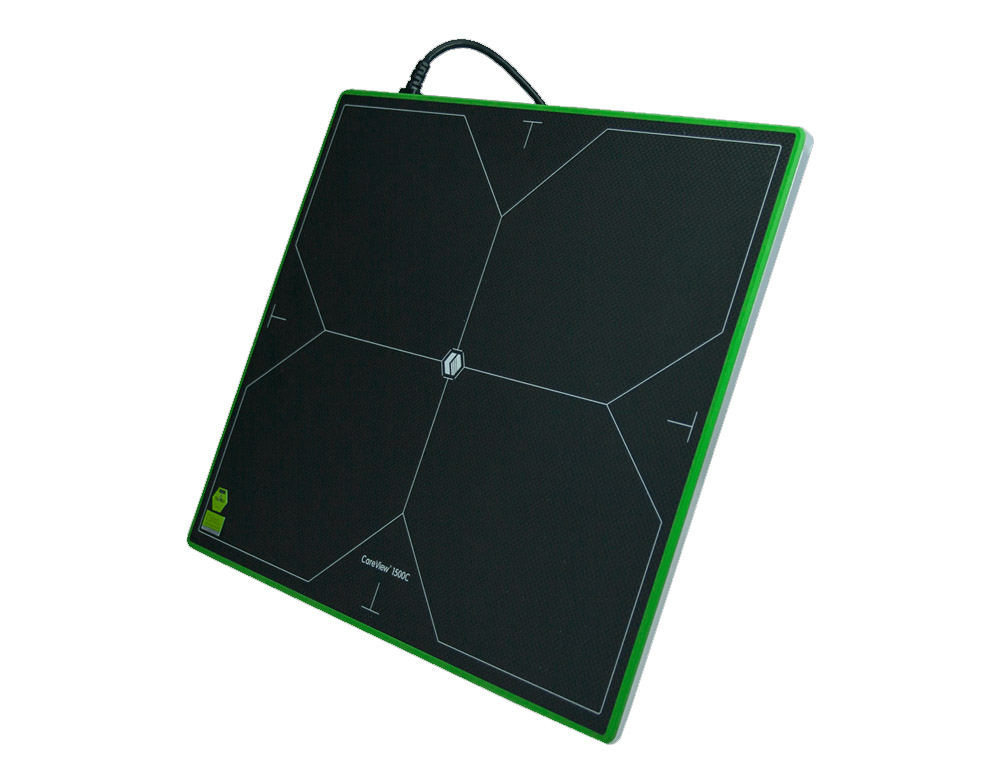

CareView 1500C 14 x 17 Tethered Digital Detector

The newest technology provides high DQE, high spatial resolution, extraordinary dynamic range and ultra-low noise. Detailed capture of thick and thin subjects and the perfect combination of image quality and robust performance.

Basic Specifications

Sensor

• Scintillator - Direct Deposit Cesium Iodide (CsI)
• Active Area - 43.37 x 35.48 cm
• Pixel Array - 2816 x 2304
• Pixel Pitch - 154 µm

Image Quality

• Greyscale - 16 bits
• Limiting Resolution - 3.3 lp/mm

Communications

• Communication Interface - Gigabit Ethernet
• Image Acquisition Time - 2-3 seconds
• Exposure Control - Full Field Automatic Exposure Detection (F2AED) or manual

Mechanical

• Dimension - 46 x 38.4 x 1.5 cm
• Weight - 3Kg (incl. battery)
• Housing Material - Carbon Fiber Front – High Strength Aluminum Alloy Back
• Weight Capacity - 150 Kg on surface area, 100 Kg on 4 cm circle
• Operating Temperature Range - 5-35 °C

Power

• Supply 100-250V AC
• Frequency 50/60 Hz
• Consumption 22 W operating, 8 W standby

Regulatory

• FDA (USA) – Yes
• CE (Europe) – Yes
• CFDA (China) – Yes
• HEALTH CANADA (Canada) – Yes
