Raymax Flat Panel Digital Radiography

Flat Panel Digital Radiography

Portable Digital X-Ray Panel Toshiba 17 x 17

Fixed Digital X-Ray Panel Varian 14 x 17

Rotate/Transverse Tubestand
  • Floor-to-wall or floor-to-ceiling mounth with 8 ft. rails
  • Transverse tubearm +/- 5″, platform tube mounth
  • Column rotation
  • Angulation dial, operator handgrips, and electric locks
  • Operates from 24 VDC, 60 Hz, 2 Amp electrical service
Elevator Table
  • Four-way float-top table with foot treadle control
  • +/- 5 transverse ravel, 32? longitudinal travel
  • 84? x 30? table top, variable table height, 22? to 33?
  • Foot treadle operation of table top and height movements
  • Grid cabinet with electric lock, 22? ravel
  • Grid: 8:1 ratio, 103 LPI, Heavy-duty cassette tray
  • 400lb. rated painted load
  • Operates from 120 VAC, 60 HZ, 6 Amp electrical service

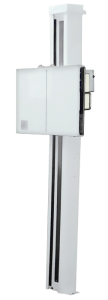

Wallstand Package
  • Grid cabinet with electric lock
  • Grid: 8:1 ratio, 103 LPI, Heavy duty cassette tray
  • External 24 VDC, 60 Hz,2 Amp power supply (120 VAC input)
