Raymax Advanced Veterinary X ray System

Raymax Advanced Veterinary Xray System
Advanced Veterinary X-ray System Brochure
  • Unique “free standing” design
  • Variable horizontal and vertical tube travel
  • 90/90 tube angulation with indicator
  • Vertical and horizontal tube stand movement controlled by electric locks
  • Moveable grid cabinet with tube stand interlock
  • 103 line, 8:1 ratio grid
  • Certified manual collimator
Options
  • Radiation shields
  • Fractional focus x-ray tubes
  • Extended horizontal off-table positioning available
HT cables
  • Two 10 ft. high tension cables
X-ray Tube
  • Toshiba heavy duty rotating anode
  • Focal spot: 1.0mm & 2.0mm, 140,000 HU capacity

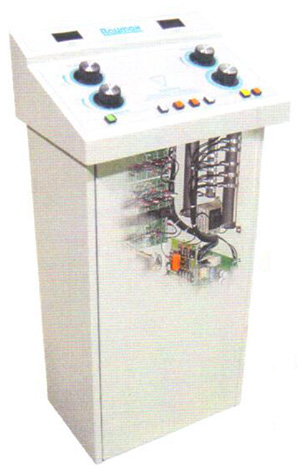

Generator
  • KV Range: 1 KV steps 40-125 KVP
  • MA Range: 60, 120, 240, 300
  • Timer Range: Digital, 1/120 to 2 seconds
  • MAS; KV: Digital Display
  • Power Requirements: 220 volts, 100 amp single phase line.
Sturdy Foot Pedal
  • Heavy duty 2 stage preparation and exposure switch.
  • Plated steel cassette tray with automatic centering lock;
  • Sealed “easy clean-up” 28” x 56” table top.
