GP5 4 Way Float Top Table System with Rotate Tube Stand

GP5 4 Way Float Top Table System with Rotate Tube Stand
GP5 4 Way Float Top Table System with Rotate Tube Stand Brochure

HF Generators

  • 0.001 to 10 Second Time Range
  • 0.1 to 500 mAs
  • kVp Selection, 40 to 125 kVp in 1 kV Increments
  • Digital Displays
  • Automatic Line Compensation
  • APR, Anatomical Programming
  • Table Mount
  • Exposure Hand Switch
  • UL/CE/FDA/Listed
  • For Operation on 1 Phase 208/240VAC – 3 Phase Optional

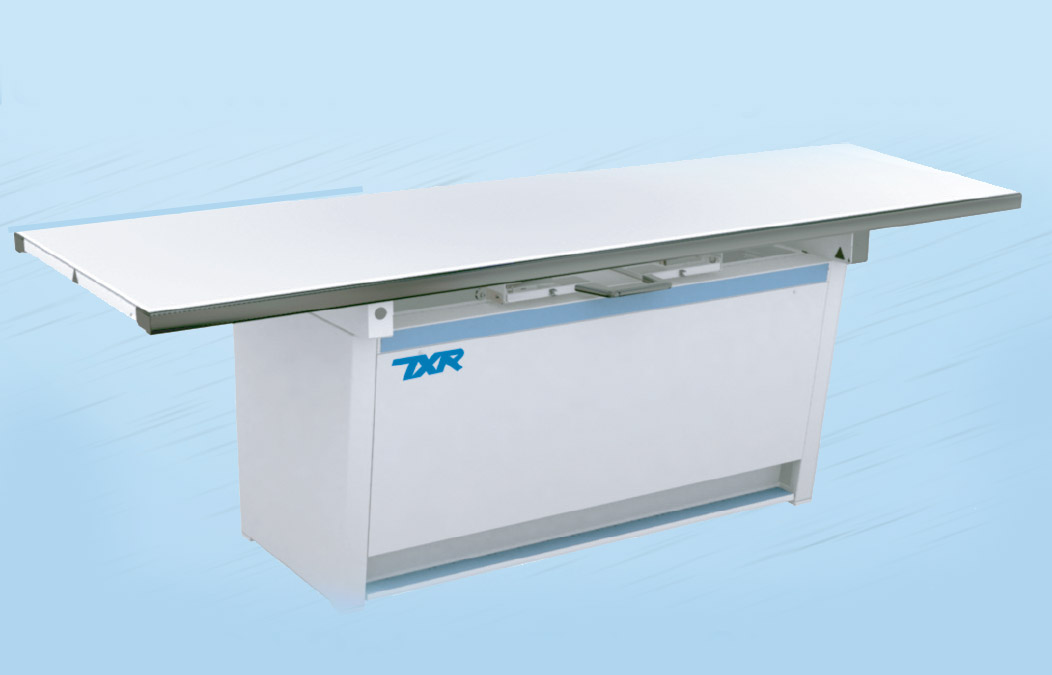

MULTI-FWFTT-G Four Way Float Top Table, Fixed Height

  • 86.5” x 32.4” (2200 mm x 825 mm) Float Top Table
  • Table Top Supports Patients up to 440 lbs (200 kgs)
  • Longitudinal Table Top Travel 35” (90 cm), ±17.5”
  • Transverse Table Top Travel 9” (23 cm), ±4.5”
  • Table Top to Film Distance 30.3” (76.9 cm)
  • Electromagnetic Brakes
  • Heavy Duty Grid Cabinet (Bucky Optional) with 103 Line, 10:1 Ratio Grid and Cassette Tray

13-CSM-84 Rotate Tube Stand

  • Floor-to-Wall Mounted
  • ±5” Transverse Travel, 180 Column Rotation
  • Vertical Travel 14.5” to 76” (36.8 to 193 cm)
  • Fits in Ceiling Heights of 97” to 102” (246.4 cm to 261.6 cm)
  • Platform Tube Mount, Angulation Dial and Operator Handles
  • Magnetic Locks Control Longitudinal, Transverse, Vertical and Tube Rotation
  • 80” (203.2 cm) Longitudinal Travel

13-BF-7E Wall Stand with Grid Cabinet

  • 84” (213.4 cm) Floor-to-Wall Mounted Column
  • Magnetic Locks
  • 17 x 17” (43 x 43 cm) Heavy Duty Grid Cabinet with 103 Line, 10:1 Ratio Grid and Cassette Tray
  • Bucky, Various Grids and Tilting Mechanism Optional
