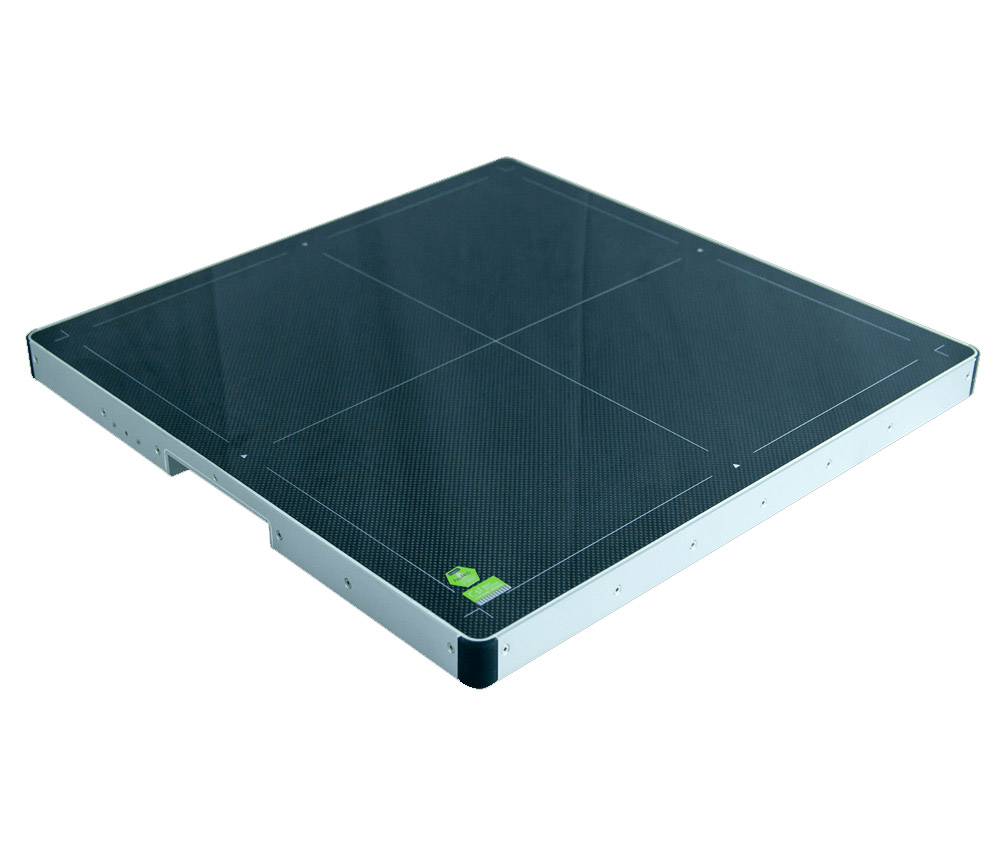

CareView 1800R 17 x 17 Fixed Tethered Digital Detector

CareView 1800R 17 x 17 Fixed Tethered Digital Detector

Our full size, fixed-mount detector for medical, veterinary and industrial use. Extra solid frame and hearty components for worry free use.

Basic Specifications

Sensor

  • Scintillator - Direct Deposit Cesium Iodide (CsI)
  • Active Area - 43.4 x 43.4 cm
  • Pixel Array - 2816 x 2816
  • Pixel Pitch - 154 µm

Image Quality

  • Greyscale - 16 bits
  • Limiting Resolution - 3.3 lp/mm

Communications

  • Communication Interface - Gigabit Ethernet
  • Image Acquisition Time - 2-3 seconds
  • Exposure Control - Manual or external sync

Mechanical

  • Dimension - 49.2 x 49.2 x 3.35 cm
  • Weight - 10 Kg (incl. battery)
  • Housing Material - Carbon Fiber Front – High Strength Aluminum Alloy Back
  • Weight Capacity - 150 Kg on surface area, 100 Kg on 4 cm circle
  • Operating Temperature Range - 5-35 °C
Power
  • Supply 100-250V AC
  • Frequency 50/60 Hz
  • Consumption 20 W operating, 8 W standby
Regulatory
  • FDA (USA) – Yes
  • CE (Europe) – Yes
  • CFDA (China) – Yes
  • HEALTH CANADA (Canada) – Pending
