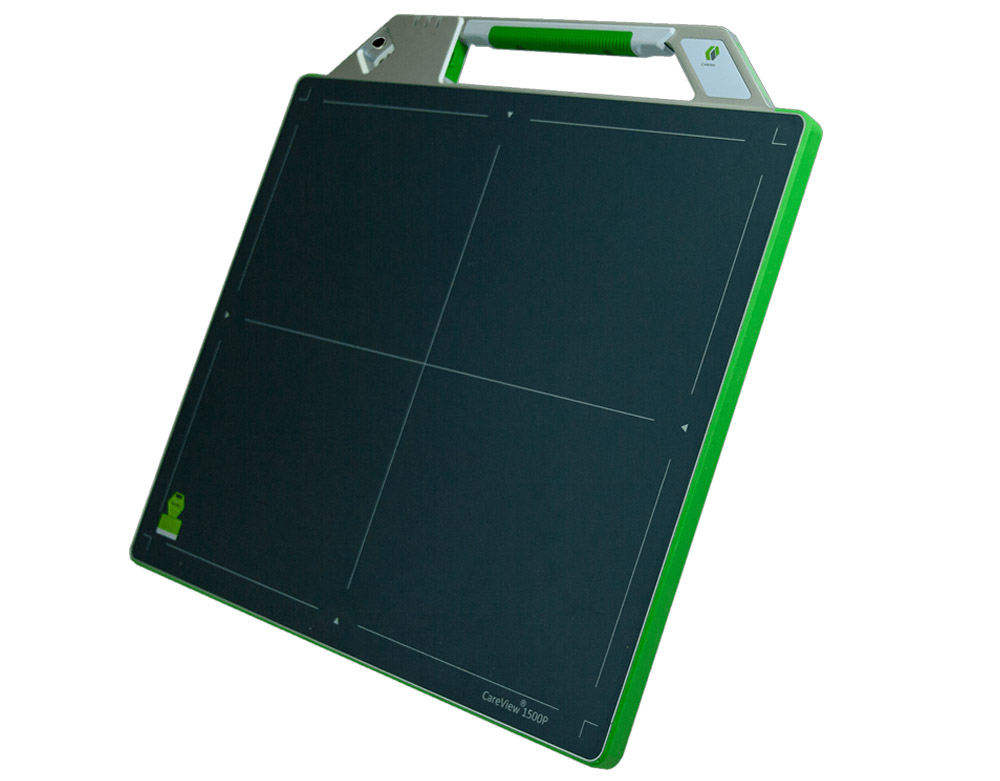

CareView 1500P 14 x 17 Wireless Portable Digital Detector

CareView 1500Cw 14 x 17 Wireless Digital Detectors

Dual band wireless image transfer in seconds. Outstanding battery capacity for up to 1400 shots at 10 second continuous intervals

Uni-body case, extra shock absorption protection and rubber seals to reliable operation in challenging environments. Superb for outdoor or mobile use.

Basic Specifications

Sensor

  • Scintillator - Direct Deposit Cesium Iodide (CsI)
  • Active Area - 43.37 x 35.48 cm
  • Pixel Array - 2816 x 2304
  • Pixel Pitch - 154 µm

Image Quality

  • Greyscale - 16 bits
  • Limiting Resolution - 3.3 lp/mm

Communications

  • Communication Interface - Gigabit Ethernet or wireless 2.4/5 GHz, 300Mbps
  • Image Acquisition Time - 4-5 seconds
  • Exposure Control - Full Field Automatic Exposure Detection (F2AED) or manual

Mechanical

  • Dimension - 47.74 x 45.36 x 1.84 cm (with solid handle)
  • Weight - 4.0 Kg (incl. battery)
  • Housing Material - Carbon Fiber Front – High Strength Aluminum Alloy Back
  • Operating Temperature Range - 5-35 °C

Power

  • Supply - 100-250V AC
  • Frequency - 50/60 Hz
  • Consumption - 24 W operating, 8 W standby

Regulatory

  • FDA (USA) – Yes
  • CE (Europe) – Yes
  • CFDA (China) – Yes
  • HEALTH CANADA (Canada) – pending
